New Variants of Agent.BTZ/ComRAT Found: The Threat That Hit The Pentagon In 2008 Still Evolving; Part 1/2

August 7, 2017·

Agent.BTZ–also known as ComRAT–is one of the world’s oldest known state-sponsored threats, mainly known for the 2008 Pentagon breach. Technically speaking, Agent.BTZ is a sophisticated user-mode RAT developed and operated by the Turla group in conjunction with Snake/Uroburos rootkit. In the past few months, we conducted research on Agent.BTZ’s code-base and how it evolved using Intezer Code Intelligence™ technology. Based on our research conclusions, we were able to hunt about a dozen new samples and more than seventy previously unknown live IP & DNS addresses indicating the ongoing abuse of satellite internet providers operating in both Africa & the Middle East.

This is a short memo regarding our findings from the past few months; get more details in Part 2 of this blog, a whitepaper we wrote on Agent.BTZ/ComRAT describing in more details how we found these new variants using our technology, along with a thorough analysis of the new samples.

Dropper

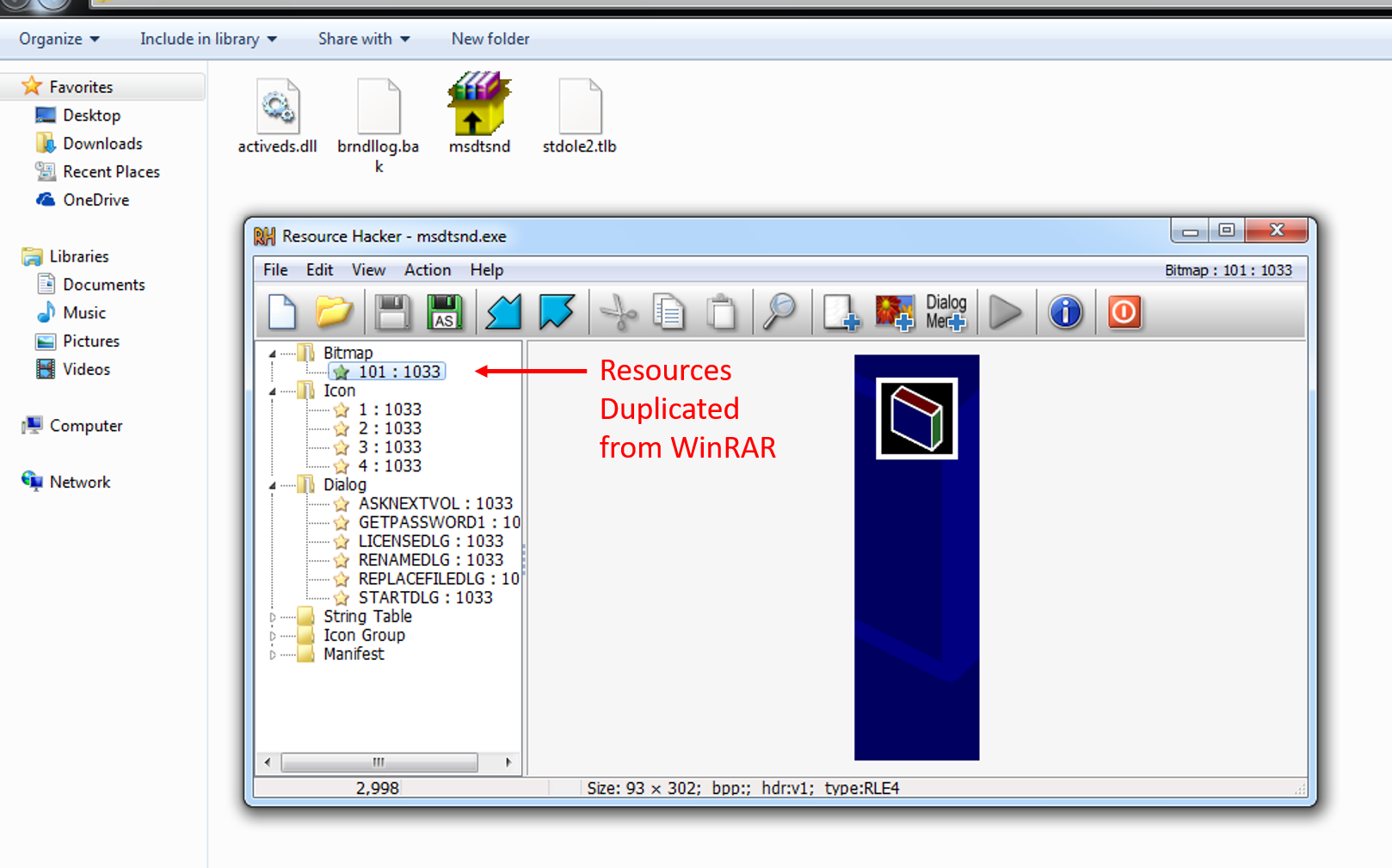

Although the code itself was written from scratch and has nothing to do with WinRAR, the adversary tried to mimic WinRAR’s SFX installer. Resource data was duplicated, including icons and layouts used by the original installer, as you can see in the following screenshot:

Once executed, the dropper installs activeds.dll – a proxy dll which is loaded directly to explorer.exe once the machine reboots. The purpose of this proxy dll is to load the malware’s main payload – stdole2.tlb. The dropper then also deletes any previous installation of Agent.BTZ if it exists. This is done using a hard-coded file path:

C:\Documents and Settings\<USER>\Application Data\Microsoft\Windows\Themes\termsvr32.dll
C:\Documents and Settings\<USER>\Application Data\Microsoft\Windows\Themes\pcasrc.tlb

**Note: These file names were first used by Agent.BTZ in late 2014, as you can see in this automatic Dr.WEB report

Once finished, the dropper renames and self delete using the following command line:

C:\WINDOWS\system32\rundll32.exe C:\DOCUME~1\<USER>~1\APPLIC~1\MICROS~1\Windowsstdole2.tlb,UnInstall C:\~$.tmp

Samples found:

69690f609140db503463daf6a3699f1bf3e2a5a6049cefe7e6437f762040e548
6798b3278ae926b0145ee342ee9840d0b2e6ba11ff995c2bc84d3c6eb3e55ff4

stdole2.tlb

As previously mentioned, this file is the main component installed by the fake-sfx dropper and loaded by activeds.dll. We extracted the configuration from each sample in order to obtain the c2 address and inner version ("PVer"), which is built into every Agent.BTZ sample. In the past, Agent.BTZ’s developers have used an incremental value to indicate the inner build version, the last known value is 3.26 as published by G-Data in late 2014, It seems that the developers have reacted to G-Data’s publication and have stopped using an incremental value. New variants are now using a different numbering system of 0.8/9.<RANDOM_VALUE>, making it more difficult for researchers to track the exact version of the samples.

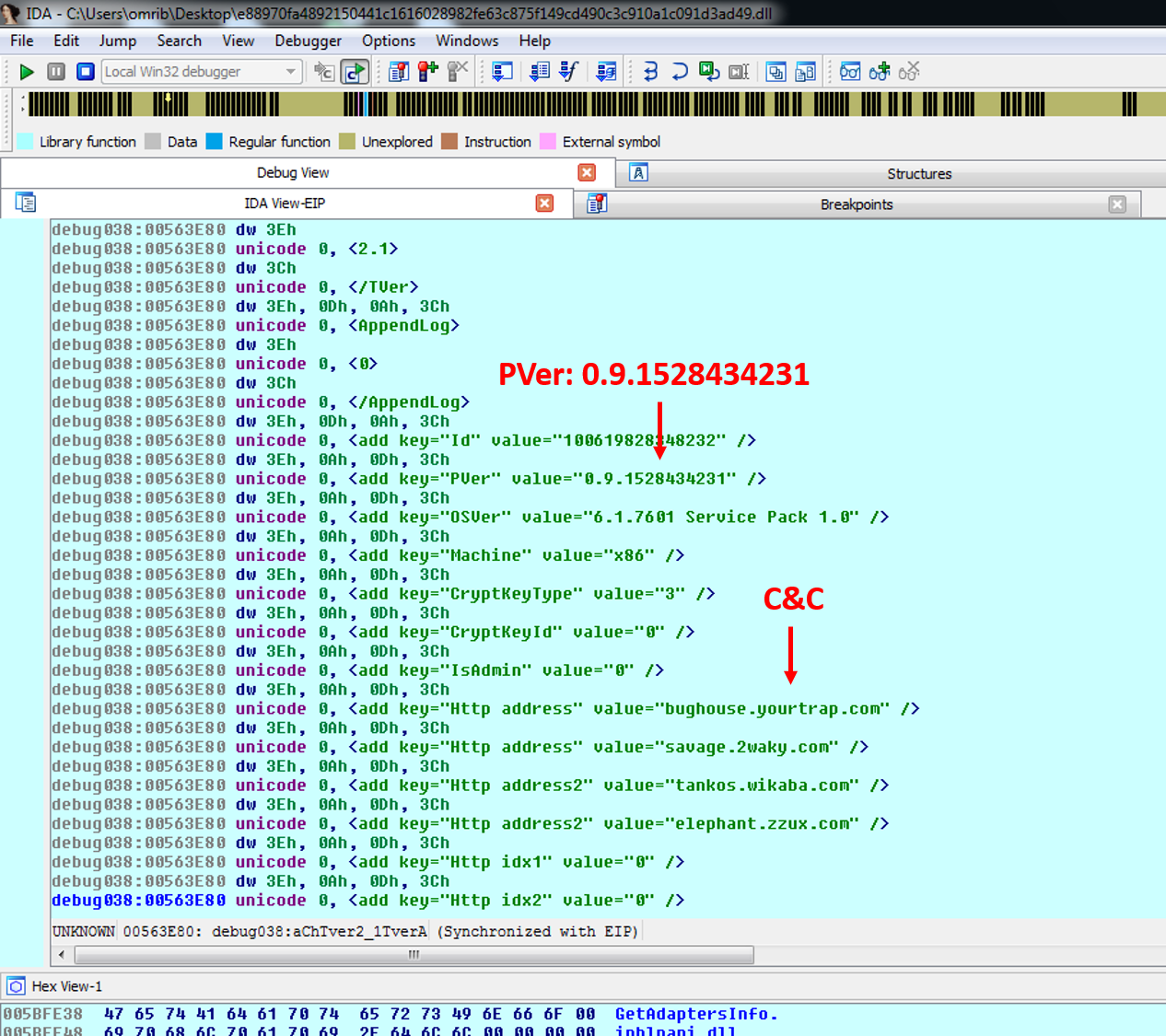

Example configuration extracted from one of the samples – PVer 0.9.1528434231.

Even without the PVer numbering, we were able to determine using our technology that these samples are from a newer version, which is based on the latest known versions of Agent.BTZ – 3.25 / 3.26. These are the two top files you can see in the following screenshot:

Both of these files were uploaded almost three years ago to VT(!)

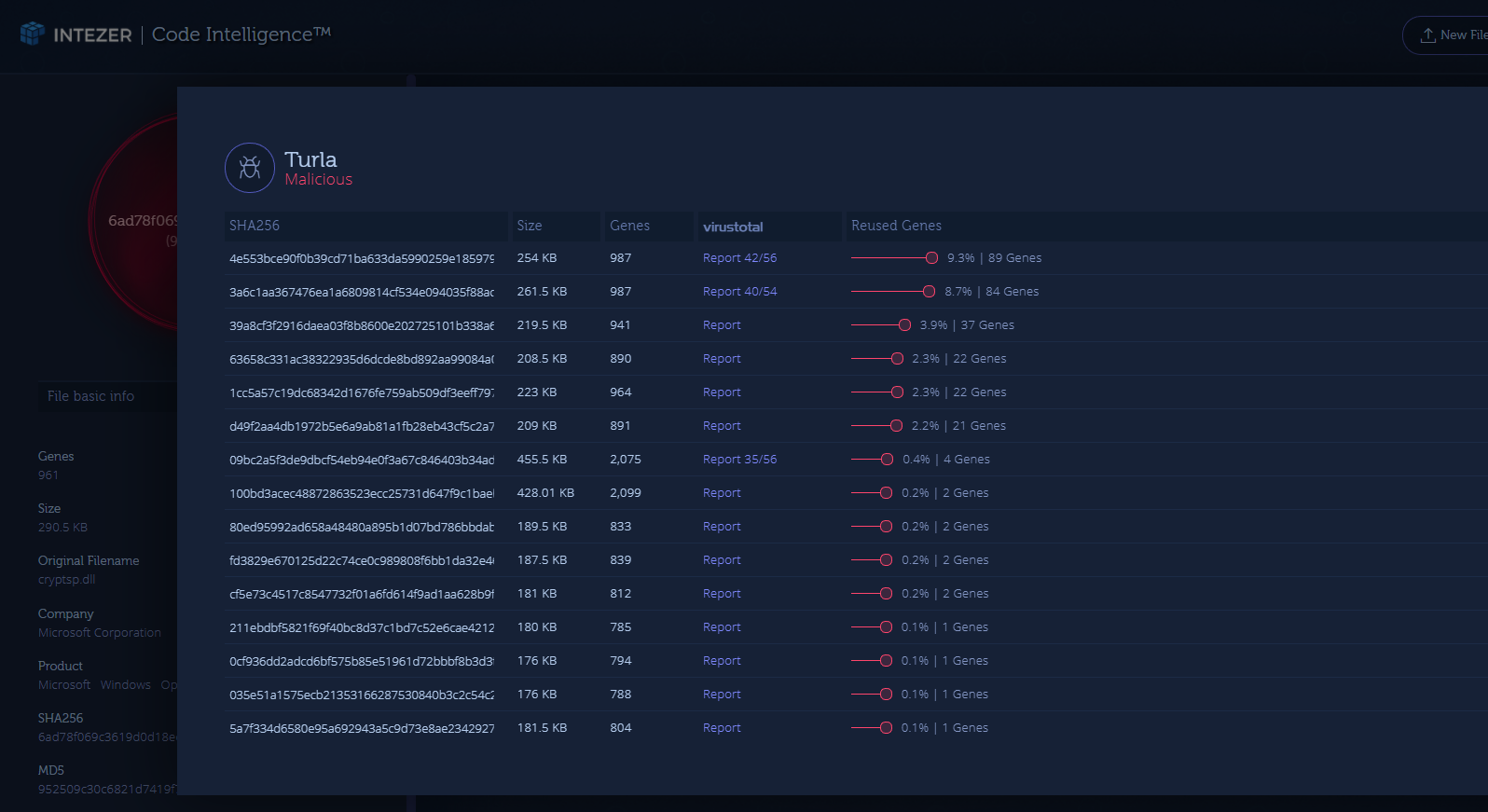

A screenshot from the Intezer Analyze™ product displaying a list of files in our database that share pieces of code with one of the new samples. These pieces of code are specific to the Turla malware family, and were not seen in any other malicious or legitimate software.

Samples found:

6ad78f069c3619d0d18eef8281219679f538cfe0c1b6d40b244beb359762cf96
49c5c798689d4a54e5b7099b647b0596fb96b996a437bb8241b5dd76e974c24e
e88970fa4892150441c1616028982fe63c875f149cd490c3c910a1c091d3ad49
89db8a69ff030600f26d5c875785d20f15d45331d007733be9a2422261d16cea

Indicators of Compromise

Files

69690f609140db503463daf6a3699f1bf3e2a5a6049cefe7e6437f762040e548 	dropper
6798b3278ae926b0145ee342ee9840d0b2e6ba11ff995c2bc84d3c6eb3e55ff4 	dropper
73db4295c5b29958c5d93c20be9482c1efffc89fc4e5c8ba59ac9425a4657a88 	activeds.dll
50067ebcc2d2069b3613a20b81f9d61f2cd5be9c85533c4ea34edbefaeb8a15f 	activeds.dll
380b0353ba8cd33da8c5e5b95e3e032e83193019e73c71875b58ec1ed389bdac 	activeds.dll
9c163c3f2bd5c5181147c6f4cf2571160197de98f496d16b38c7dc46b5dc1426 	activeds.dll
628d316a983383ed716e3f827720915683a8876b54677878a7d2db376d117a24 	activeds.dll
f27e9bba6a2635731845b4334b807c0e4f57d3b790cecdc77d8fef50629f51a2 	activeds.dll
a093fa22d7bc4ee99049a29b66a13d4bf4d1899ed4c7a8423fbb8c54f4230f3c 	activeds.dll
6ad78f069c3619d0d18eef8281219679f538cfe0c1b6d40b244beb359762cf96 	stdole2.tlb
49c5c798689d4a54e5b7099b647b0596fb96b996a437bb8241b5dd76e974c24e 	stdole2.tlb
e88970fa4892150441c1616028982fe63c875f149cd490c3c910a1c091d3ad49 	stdole2.tlb
89db8a69ff030600f26d5c875785d20f15d45331d007733be9a2422261d16cea 	stdole2.tlb
0e0045d2c4bfff4345d460957a543e2e7f1638de745644f6bf58555c1d287286 	other
bdcc7e900f10986cdb6dc7762de35b4f07f2ee153a341bef843b866e999d73a3 	other
fac13f08afe2745fc441ada37120cebce0e0aa16d03a03e9cda3ec9384dd40f2 	backdoor
bae62f7f96c4cc300ec685f42eb451388cf50a13aa624b3f2a019d071fddaeb1 	other

Network

81.199.34[.]150
elephant.zzux[.]com
angrybear.ignorelist[.]com
bigalert.mefound[.]com
bughouse.yourtrap[.]com
getfreetools.strangled[.]net
news100top.diskstation[.]org
pro100sport.mein-vigor[.]de
redneck.yourtrap[.]com
savage.2waky[.]com
tehnologtrade.4irc[.]com
81.199.160[.]11
forums.chatnook[.]com
goodengine.darktech[.]org
locker.strangled[.]net
simple-house.zzux[.]com
specialcar.mooo[.]com
sunseed.strangled[.]net
whitelibrary.4irc[.]com
bloodpearl.strangled[.]net
getlucky.ignorelist[.]com
proriot.zzux[.]com
fourapi.mooo[.]com
nopasaran.strangled[.]net
78.138.25[.]29
showme.twilightparadox[.]com
mouses.strangled[.]net
82.146.175[.]69
mouses.strangled[.]net
178.219.68[.]242
ftp.fueldust.compress[.]to
ftp.linear.wikaba[.]com
ftp.mysterysoft.epac[.]to
ftp.scroller.longmusic[.]com
ftp.spartano.mefound[.]com
fueldust.compress[.]to
linear.wikaba[.]com
mysterysoft.epac.to
safety.deaftone[.]com
salary.flnet[.]org
scroller.longmusic[.]com
spartano.mefound[.]com
88.83.25[.]122
robot.wikaba[.]com
41.223.91[.]217
smileman.compress[.]to
decent.ignorelist[.]com
dekka.biz[.]tm
disol.strangled[.]net
eraser.2waky[.]com
filelord.epac[.]to
justsoft.epac[.]to
smuggler.zzux[.]com
sport-journal.twilightparadox[.]com
sportinfo.yourtrap[.]com
stager.ignorelist[.]com
tankos.wikaba[.]com
grandfathers.mooo[.]com
homeric.mooo[.]com
jamming.mooo[.]com
pneumo.mooo[.]com
razory.mooo[.]com
anger.scieron[.]com
gantama.mefound[.]com
letgetbad.epac[.]to
rowstate.epac[.]to
memento.info[.]tm
196.43.240[.]177
bughouse.yourtrap[.]com
news100top.diskstation[.]org
169.255.102[.]240
harm17.zzux[.]com
mountain8.wikaba[.]com
